Carbo Kft. Kecskemét - We have been producing electrical heaters for more than 25 years!

Special heaters

Flat tube heating inserts with square-oval cross section
Aluminum tube heating element
Ceramic infrared emitters
Quartz tube

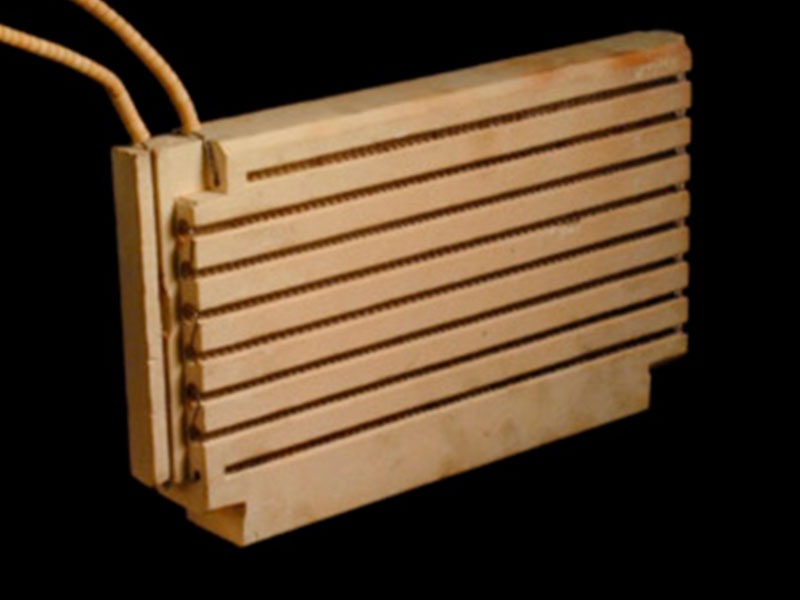

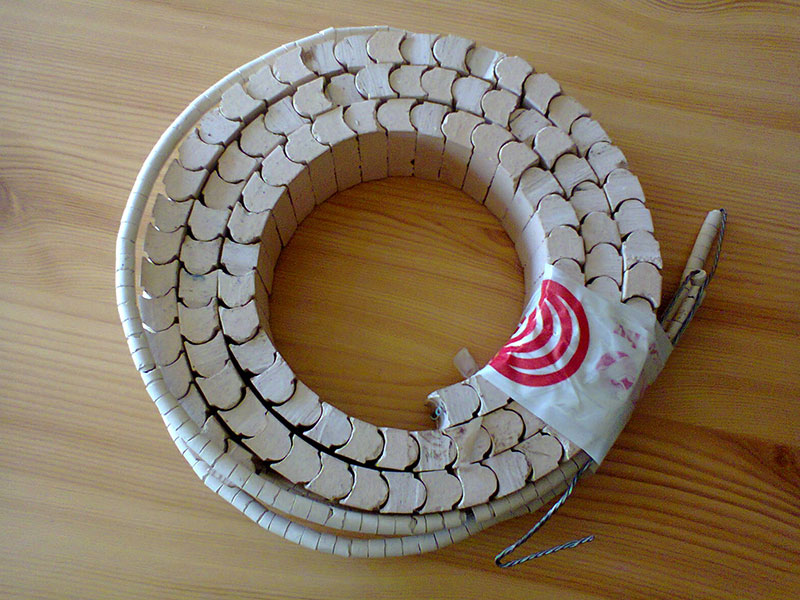

Cantilever wire bent heating pads, which are mainly used in furnaces

We can also supply complete furnaces e.g. dental, melting, gold melting, heat treatment, glass furnaces, laboratory furnaces ... and whatever.

1. Flat tube heating inserts with square-oval cross section

Electric flat heating inserts have a wide range of applications in the industry. Flat oval cross-section tube heating inserts have the great advantage of being in direct contact with the surface due to their high compaction, resulting in excellent heat transfer. Impact strength can be maintained to the maximum.

Area of application: oil bath, liquid heating, air, gas heating, drying oven, for railway change rails, tram change rails.

Material: stainless AlSl321, AlSl316, monel400, Incoloy800

Power and voltage: on request

Terminal: single-sided, double-sided outlet on request, shoe, silicone, fiberglass, impregnated...

Shape: any size and shape depending on use.

When ordering, please provide the following information:

area-medium of application
pipe diameter
pipe length
material quality
voltage
performance
outlet
sample or drawing

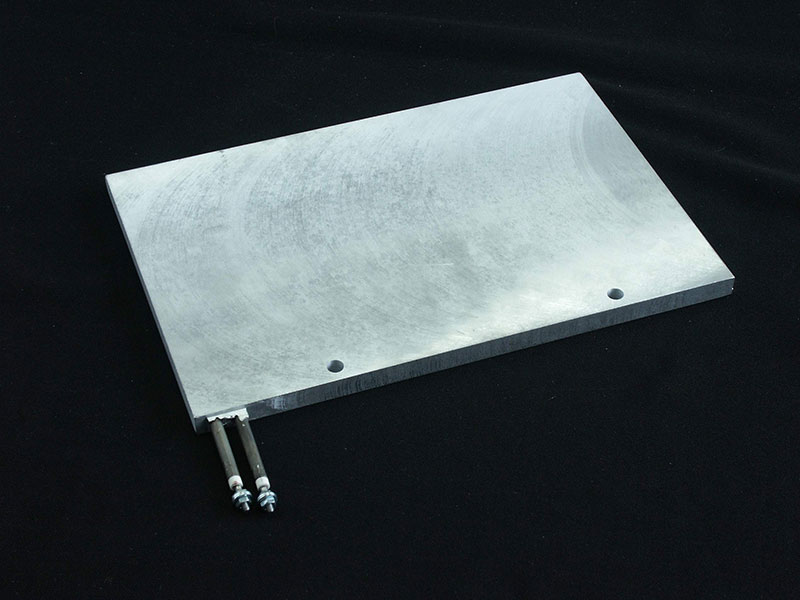

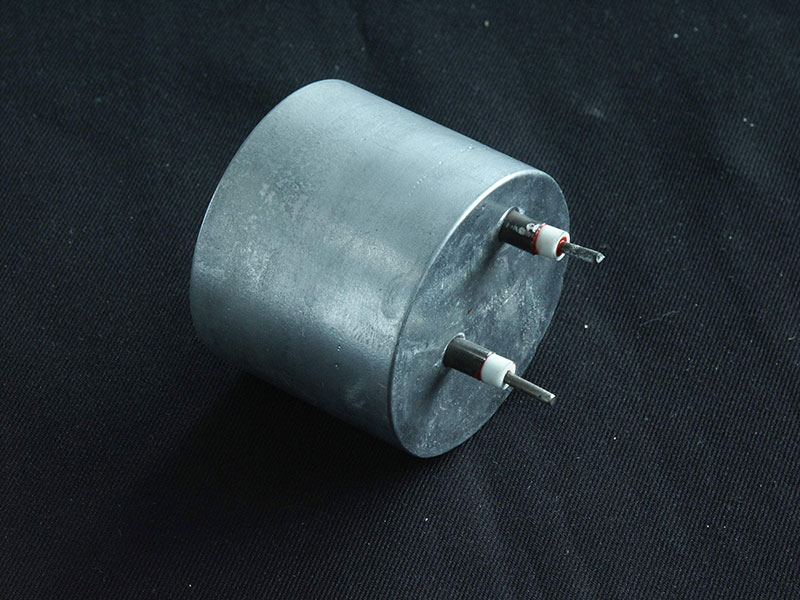

2. Molded tube heaters

Heaters cast in silumin or pressed into previously made grooves in pieces of steel, brass, bronze, aluminum, etc.
The molded tube heating inserts allow a more even temperature distribution, which means they are maximally ideal for heating any material than components with a larger heating surface.
It can be manufactured in a variety of formats and sizes.
These heaters are usually equipped with thermostats or probes to control the temperature.
Area of application: Plastics industry (extruders, welding plastics), packaging and gluing machines, heating of tools and machine parts, air heating, food industry.
If you are interested, please contact our company by phone or e-mail.

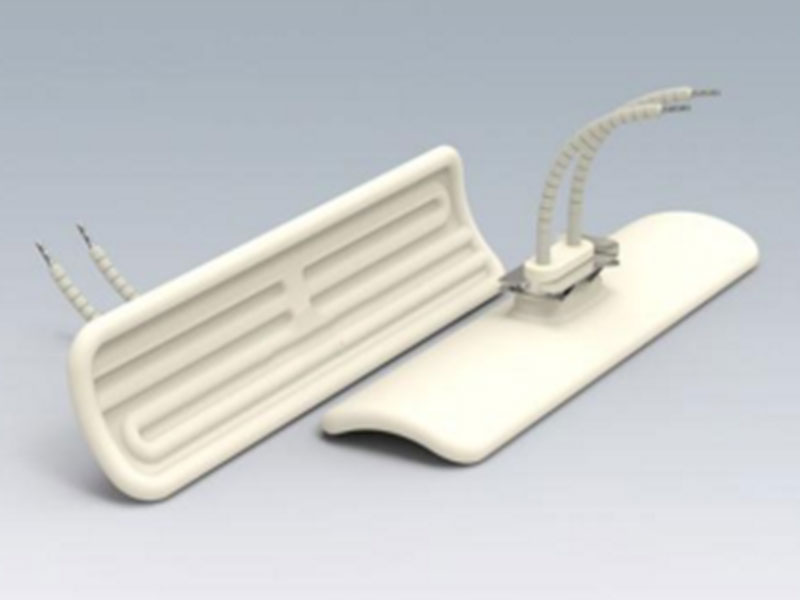

3. Ceramic infrared heating pad

Areas of application: heating of plastic films and sheets, production of shrink film, drying of plastic emulsions, drying of raw and printed paper, firing of lacquered surfaces, heat treatment of glass, heating of climate chambers, heating of infrared saunas, keeping food warm.

Our mass-produced dimensions:

122 x 60 mm (125,200,325,500 W)
245 x 60 mm (150,250,400,650,1000W)

Consultation is required if different sizes are requested.

Operating voltage: 230V

Specifications:

Iron-chrome-aluminum alloy wire
Useful wavelength range: 2-10 μm
Average age: 5000-10000 hours
The surface temperature is 750°C
Cable length 100 mm, insulated ceramic beads
Thermocouple: used to control temperature, type K thermocouple
The recommended distance for heating from radiation is 100 to 200 mm.

Sizes	Item number	Thermostat	W	Temperature	Weight
122x60mm	GK.09.001.01	-	125	354 C	without thermostat: 158g with thermostat: 166g
	GK.09.003.01	K-type	125	354 C
	GK.09.001.02	-	200	454 C
	GK.09.003.02	K-type	200	454 C
	GK.09.001.03	-	325	553 C
	GK.09.003.03	K-type	325	553 C
	GK.09.001.04	-	500	685 C
	GK.09.003.04	K-type	500	685 C
245x60mm	GK.09.002.01	-	150	262 C	without thermostat: 273g with thermostat: 287g
	GK.09.004.01	K-type	150	262 C
	GK.09.002.02	-	250	354 C
	GK.09.004.02	K-type	250	354 C
	GK.09.002.03	-	400	464 C
	GK.09.004.03	K-type	400	464 C
	GK.09.002.04	-	650	589 C
	GK.09.004.04	K-type	650	589 C
	GK.09.002.05	-	1000
	GK.09.004.05	K-type	1000

When ordering, please provide the following information:

size
performance
