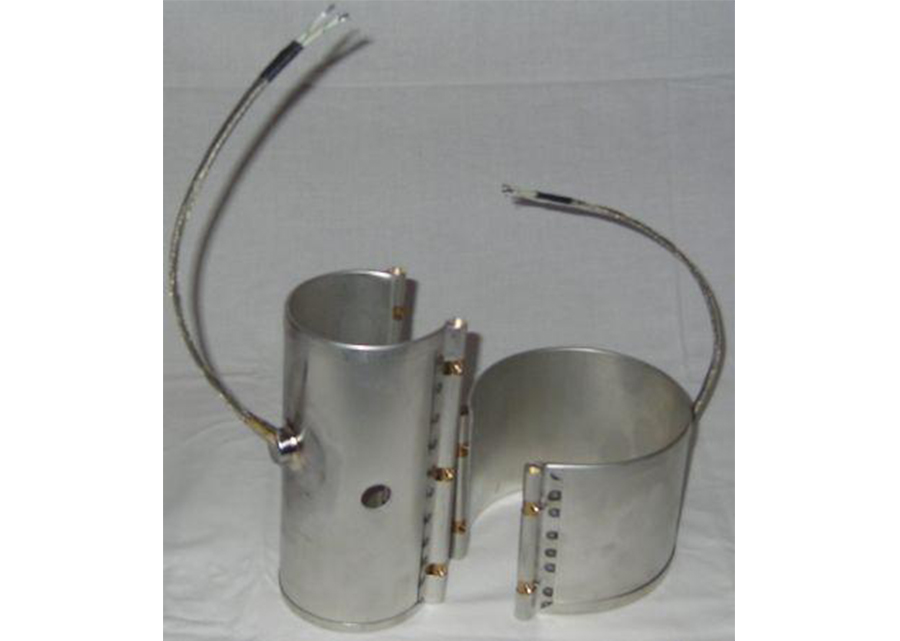

The great advantage of mantle heaters is that they provide even heating and have a long service life. This saves energy and is easy to install.

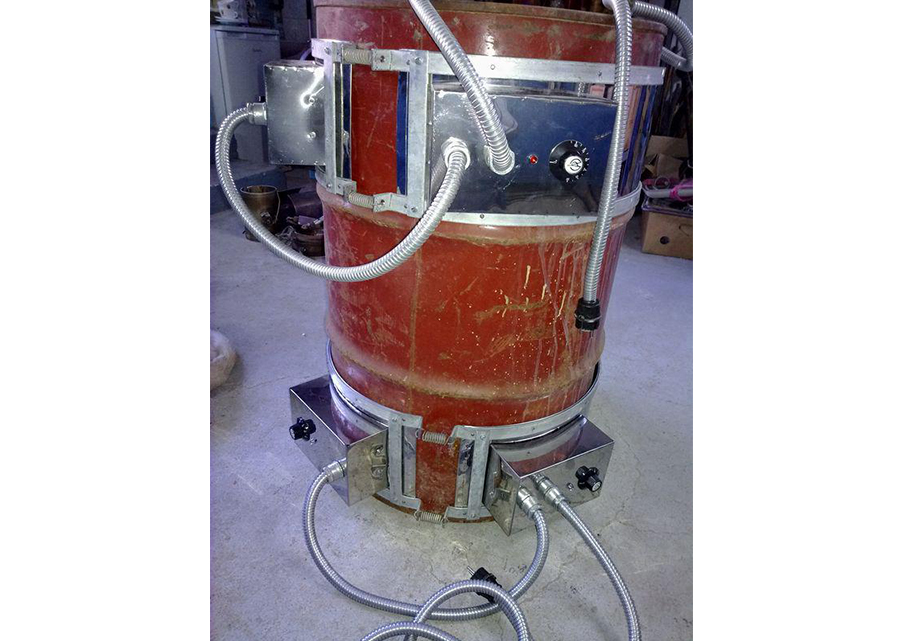

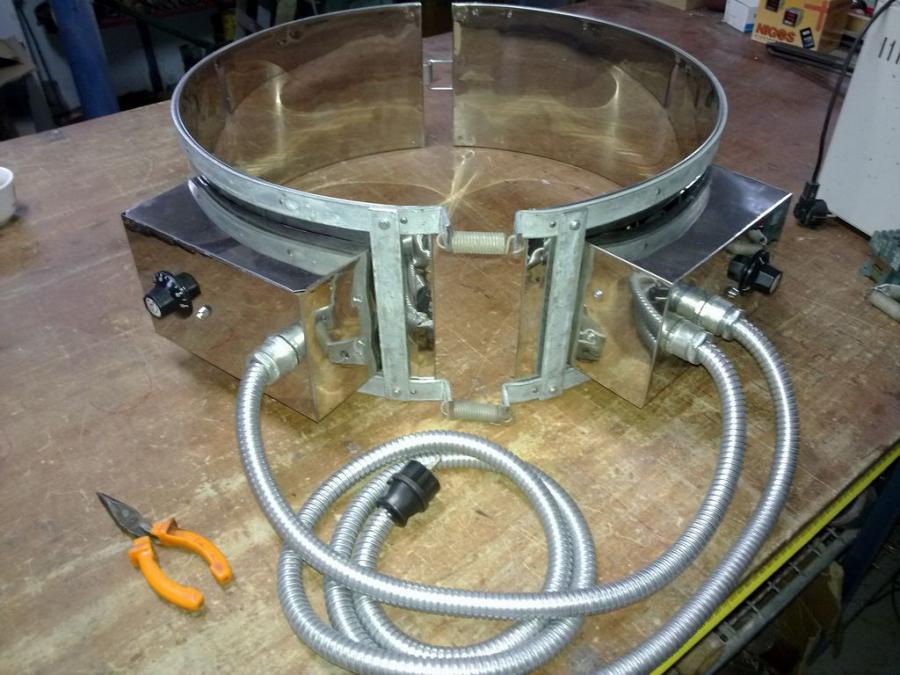

Application area: cylindrical workpieces, circular bodies, sleeves, castings, barrels, tanks and heating nozzles for injection molding.

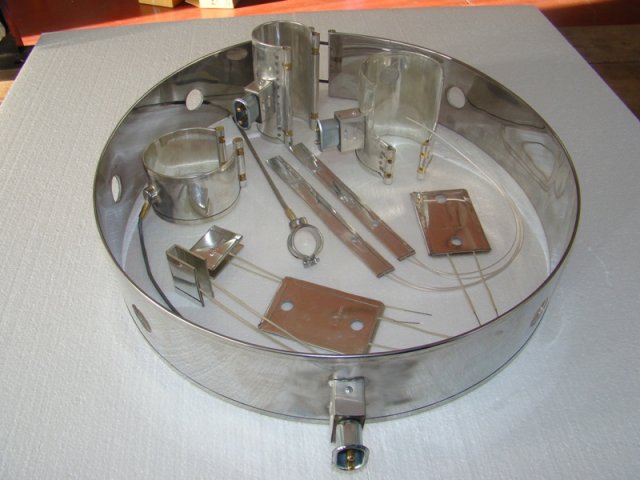

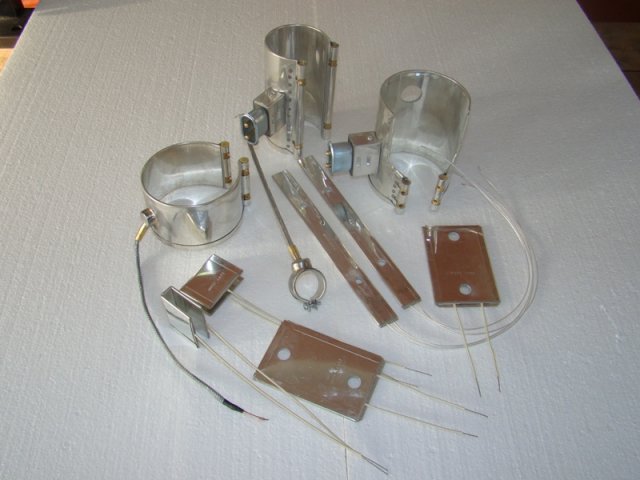

Material and form: stainless steel or stainless steel with ceramic insulation, stainless steel mica (liszkun) - with micanite insulation.

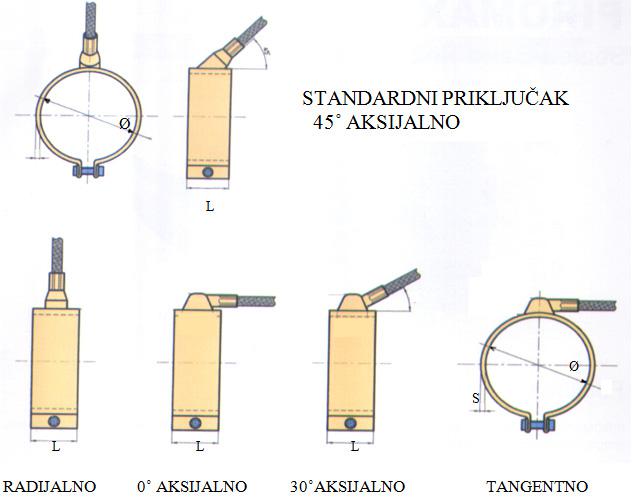

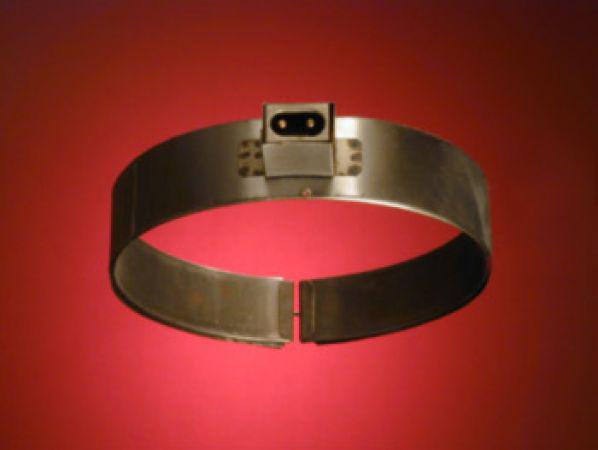

Connection method: iron connection, heat-resistant cable, euro connection, screw, and additional on request
They have two types:

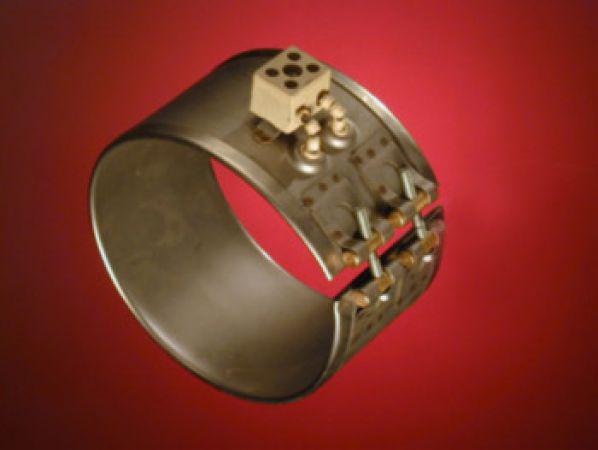

Sheathed radiators with mica-micanite insulation
Mica-micanite insulated mantle radiators are ideal for heat transfer as the heating element is made of stainless steel (inner wall) with high thermal conductivity, the outer wall is made of stainless steel and also has high heat resistance. The insulation is mica.mikanit which is heat resistant to high temperatures. Maximum external load: 3.5 W / cm2 Maximum operating temperature: 350°C

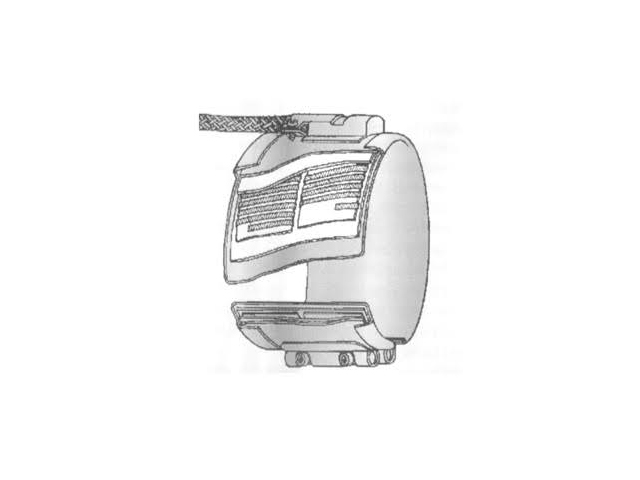

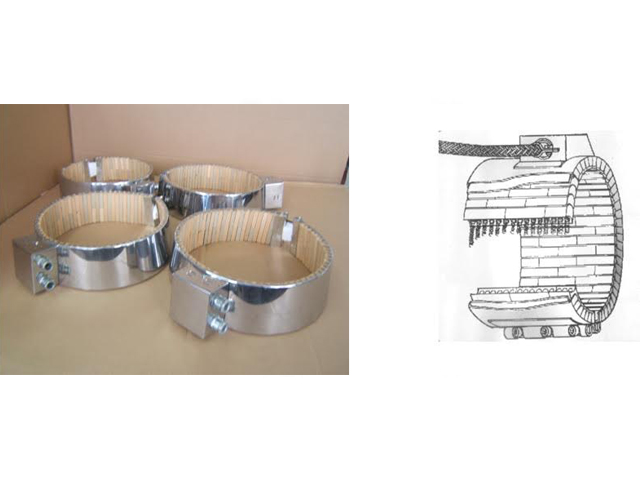

Sheathed radiators with ceramic insulation
Ceramic insulated radiators are also ideal for heat transfer, their important feature is energy saving as the ceramic provides perfect even heat transfer and heating. Maximum external load: 8 W / cm2 Maximum operating temperature: 600°C
Sheath heaters voltage
12V ; 24V ; 42V ; 48V ; 110V ; 230V ; 380V...and on demand. We can manufacture mantle radiators on the basis of a drawing or sample in a short time.
